An important tool for field use is the Celestron Aluminium Dew Shield with Cover Cap, which shields the telescope tube from moisture. In order to keep the Schmidt corrector lens below the dew point for a longer period of time and avoid dew formation on the lens, the dew shield lowers the radiative cooling of the lens to the night sky. Additionally, the Aluminium Dew Shield improves viewing and astroimaging by reducing stray light entering the telescope and increasing image contrast. With the knowledge that the Aluminium Dew Shield was made specifically for your instrument, you can use it with confidence on your 9.25" Schmidt Cassegrain and EdgeHD telescope tube.
The 9.25" Celestron telescope tubes are perfectly and specifically fitted with the Aluminium Dew Shield. A strong metal cylinder that will not fold, flex, or distort makes up the dew shield's exterior. The interior is lined with velvet, which absorbs extra stray light and extra moisture to produce the best contrast for viewing and photography. To ensure a tight fit, attach the dew shield to your telescope tube using the two adjustable clips.
The cover cap was similarly made from strong yet lightweight aluminium. Put the cover cap on your dew shield when your telescope is not in use to shield your Schmidt corrector from errant dust particles. You can quickly and conveniently acquire dark frames for imaging with the help of the cover cap.
You're undoubtedly accustomed to routing cables out the front of the dew shield if you prefer using your Schmidt-Cassegrain or EdgeHD in the Fastar/Hyperstar setup. With the built-in cable management slot at the base of the Aluminium Dew Shield, you can simplify and streamline your setup. With this slot, you have a simple way to contain important cables (such those for our Dew Heater rings) without running the risk of letting light pollution inside. Additionally, the top and bottom of the telescope tube have openings for dovetail rails, ensuring a tight fit no matter the setup.
- Fits 9.25” Schmidt-Cassegrain and EdgeHD telescope tubes
- Helps prevent dew formation on the Schmidt corrector lens
- Prevents off-axis glare from entering the optical system
- Rigid body with a velvet-lined interior surface to reduce stray light
- Two adjustable clips for easy installation and disassembly
- Cable management at the base of the shield—perfect for using the Fastar/Hyperstar configuration or using in conjunction with the Celestron Dew Heater Rings
- An included cover cap keeps your telescope free from dust when not in use
Material: Aluminium with plastic attachment clips, interior velvet lined
Cover Cap: Aluminium - included
Weight: 2.6 lbs (1.18 kg)
Dimensions: 11" (279.4mm) diameter x 14.4" (365.76mm) long
Cable slot dimensions: 1.25" (31.75mm) wide x 1.5" (38.1mm) long
Cover cap weight: 12.8 oz (362.87 g)

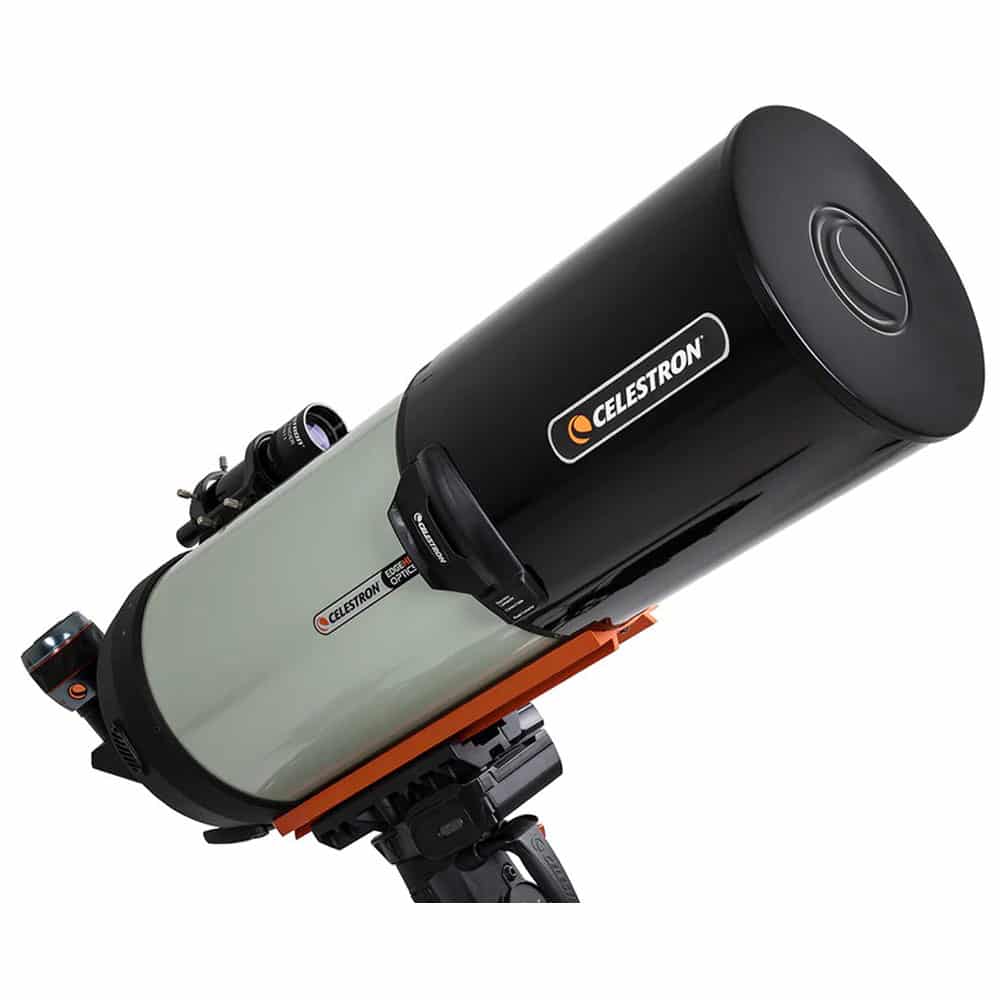

Note: Telescope is for illustrative purposes only and not included.
