Celestron Large SCT & EdgeHD Adapter V2 for Off-Axis Guider

Celestron Large SCT & EdgeHD Adapter V2 for Off-Axis Guider

Celestron Large SCT & EdgeHD Adapter V2 for Off-Axis Guider
  Zoom
Celestron Large SCT & EdgeHD Adapter V2 for Off-Axis GuiderCelestron Large SCT & EdgeHD Adapter V2 for Off-Axis GuiderCelestron Large SCT & EdgeHD Adapter V2 for Off-Axis Guider

Celestron Large SCT & EdgeHD Adapter V2 for Off-Axis Guider

You can achieve a greater illumination area with the Celestron Large SCT & EdgeHD Adapter V2 for Off-Axis Guider. Using these two together lets you use the full image circle in larger Celestron telescopes

£35.59
£53.99
Earn 35 Loyalty Points
Your Saving:  £18.40
No stock<span class='category-hidden'>, discontinued</span>

No stock, discontinued

Order soon for UK next working day delivery

Free delivery available on all products

Celestron

Product details

Bar Code:  050234936668
Part Number:  93666-CGL
Brand:  Celestron
Warranty  2 Years



Produce a larger area of illumination for your 9.25”, 11” or 14” Schmidt-Cassegrain or EdgeHD telescope by using the this adapter. When this adapter is paired with the Celestron Off-Axis Guider, these two imaging accessories allow you to use the full image circle in the larger scopes. This configuration is especially helpful to owners of larger format cameras, such as the Canon 5D or 6D, since their full frame can take advantage of the more substantial area of illumination produced by larger optical tubes.

The Large SCT & EdgeHD Adapter V2 for Off-Axis Guider has a longer optical length—38mm. The adapter’s longer length provides DSLR cameras back-focus spacing for Schmidt-Cassegrain and EdgeHD optical tubes in conjunction with the Off-Axis Guider without the need for extra adapters or spacers.

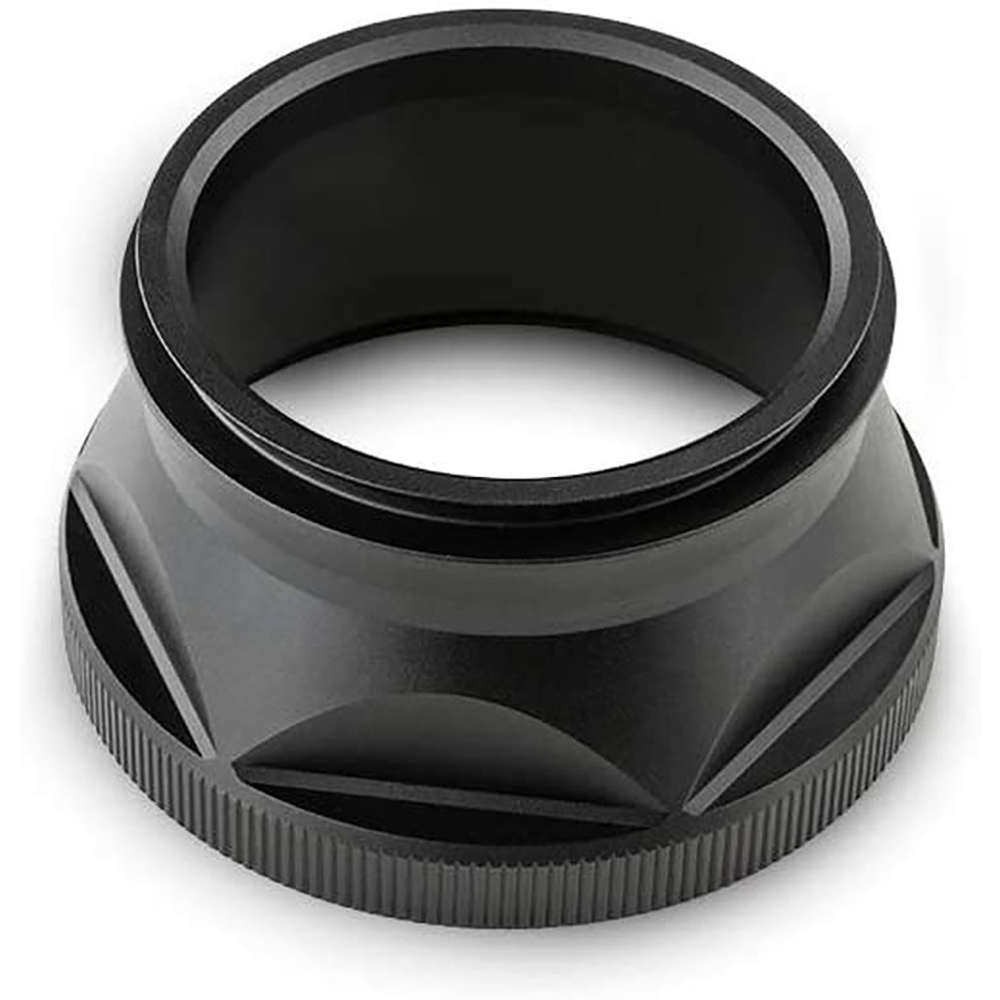

The Large SCT & EdgeHD Adapter V2 for Off-Axis Guider is machined aluminium black anodised. The internal surfaces are sandblasted to help prevent glare and provide the highest contrast. The adapter has a knurled surface providing a great gripping surface for threading and unthreading.

Features
- Custom-designed adapter works in conjunction with the Celestron Off-Axis Guider to produce a larger area of illumination when imaging through larger Schmidt-Cassegrain & EdgeHD telescopes
- NEW. Longer length to better accommodate DSLR back-focus spacing without the need for extra adapters
- Great for larger format cameras like the Canon 5D or 6D—allows use of the full image circle for better illumination of the sensor
- Achieve the highest contrast with the adapter’s black anodized aluminum construction
- Knurled surface provides a convenient gripping area for threading and un-threading the adapter from the telescope

Specifications
Optical Length: 38mm (1.49")
Clear Aperature: 63mm (2.48")
Construction: Aluminum Black Anodized
Weight: 6 oz (170.09 g)
